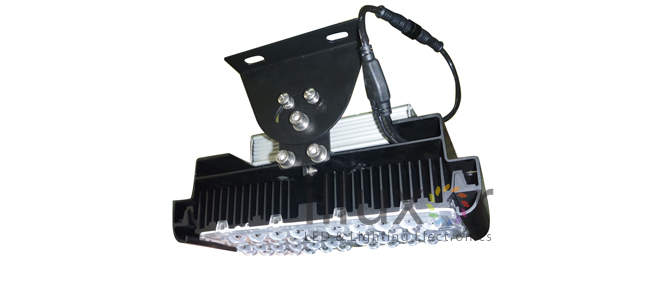

illuxor Double IP68 High Efficiency LED Modules

MODEL	LED QTY	COLOR (K)		Drive Current	Beam Angle	Lumen/Watt (lm)	DIMENSIONS
							L	W	H
1 Module	18	2700-	6000	350mA to 700mA	120°	80 - 120	75	330	90
2 Modules	36	2700-	6000	350mA to 700mA	120°	80 - 120	160	330	90
3 Modules	54	2700-	6000	350mA to 700mA	120°	80 - 120	245	330	90

Product Details

Key Specifications

• Honeycomb effect--It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 ℃.
• Full structure heat radiation--It is available to make clever use of module bracket that only play a supporting role, and to transform it to a “thermal bracket” that is capable of conducting the module’s heat to the light shell as a structural part, thus to promote the cooling effect of radiator of cooling module, the design aims to fully utilize the surface area of structural parts to transfer heat to air.
• Tool-free maintenance-Use special structural design to achieve the manual disassembly and installation of lighting components, in consideration that the high-power lights are generally installed in higher operating environment, the operators require as few tools as possible for their convenience and security.
• “Ultra Robust” module technology
  Each LED is equipped with bypass protection, to protect single-circuit structure of the full connection series, even open or short circuit fault can’t affect current and voltage distribution of other LED, the other LED can work under the normal operating mode, thus extending the life cycle of the whole module.
• Double-coupling IP68 protection
  It adopts the screw-free structure to avoid the penetration of water vapor through the screw hole; its double silicon-rubber rings insulate LEDs  with the outside environment completely, thus to eliminate any erosion to chips and PCB boards from outside.
• Independent multi-circuit constant-current output--Each circuit is independently controlled; any failure in single circuit does not affect the normal work of other circuits. If a    single LED unit is damaged, the current distribution isalso even in the entire series and parallel structure, thus protect the whole system and make sure the life span as long as possible.
• Lighting Source: PHILIPS Luxeon Lumileds Rebel, PHILIPS Luxeon Lumileds Rebel ES
• Input voltage:AC90-305V
• Light Distribution Curve:Bat Wing
• Peak lighting Angle:120 degree
• Color Temperature: 3000K-6500K
• CRI: More than 70
• Working environment:-40ºC to 50ºC; 10% -90%RH
• Life Span: 50,000 hours
• Warranty: 2 years replacement
• Body and shell materials: Aluminum alloy
• Protection Grade: LED driver IP67; the light:IP68
• Surge Voltage: 10Kv
• Installation size: Φ60mm
• Power range: Based on Modules, 40W/80W/120W are available.
