| MODEL | LED QTY |
COLOR (K) | Drive Current | Beam Angle |
Lumen (lm) |
DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|---|
| L | W | H | |||||||

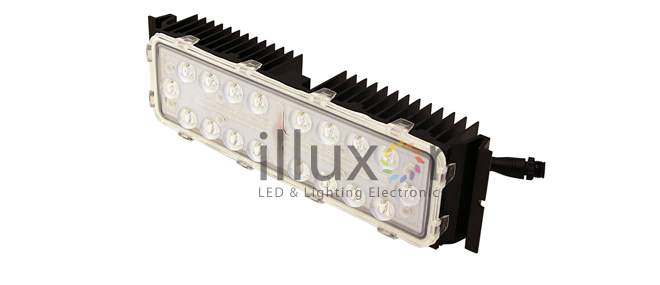

| IL-MOD-PES | 18 | 2700- | 6000 | 350mA to 700mA | 120° | 80 - 120 | 275 | 75 | 45 |
The Main features:
“Ultra Robust” module technology
Each LED is equipped with bypass protection, to protect single-circuit structure of the full connection series, even open or short circuit fault can’t affect current and voltage distribution of other LED, the other LED can work under the normal operating mode.
Double-coupling IP68 protection
It adopts the screw-free structure to avoid the penetration of water vapor through the screw hole; its double silicon-rubber rings insulate LEDs with the outside environment completely, thus to eliminate any erosion to chips and PCB boards from outside.
Honeycomb Briquette effect
It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 ℃.
Heat dissipation of the whole structure
Make clever use of module bracket that only play a supporting role, and to transform it to a “thermal bracket” that is capable of conducting the module’s heat to the light shell as a structural part, thus to promote the cooling effect of radiator of cooling module, the design aims to fully utilize the surface area to transfer heat to air.
Independent multi-circuit constant-current output
Each circuit is independently controlled; any failure in single circuit does not affect normal work of other circuits. If a single LED unit is damaged, the current distribution is also even in the entire series and parallel structure, thus protect the whole system.
Tool-free maintenance
Use special structural design to achieve the manual disassembly and installation of lighting components, in consideration that the high-power lights are generally installed in higher operating environment, the operators require as few tools as possible for their convenience and security.
Technical specifications
LED Chip: LUMILEDS
Luminous efficicacy of the whole module: 80 to 120LM/ Watt
Color Tempterature: 2700K to 6000K or customized
Dimention: 275*70*45mm
IP Rate: Double IP68
Drive Current: 350mA to 700mA
Connections of the LED unit: 18 units in series
Interface: 2Screw metalic waterproof connectors
Net Weight: 0.85Kg
